        GDOU2020 Two-in-one EOC Master

        GDOU2020?series two-in-one is a multimedia local access device that based on IEEE P1901/HomePlug AV、EPON and other ...

        Current position:HOME > EOC

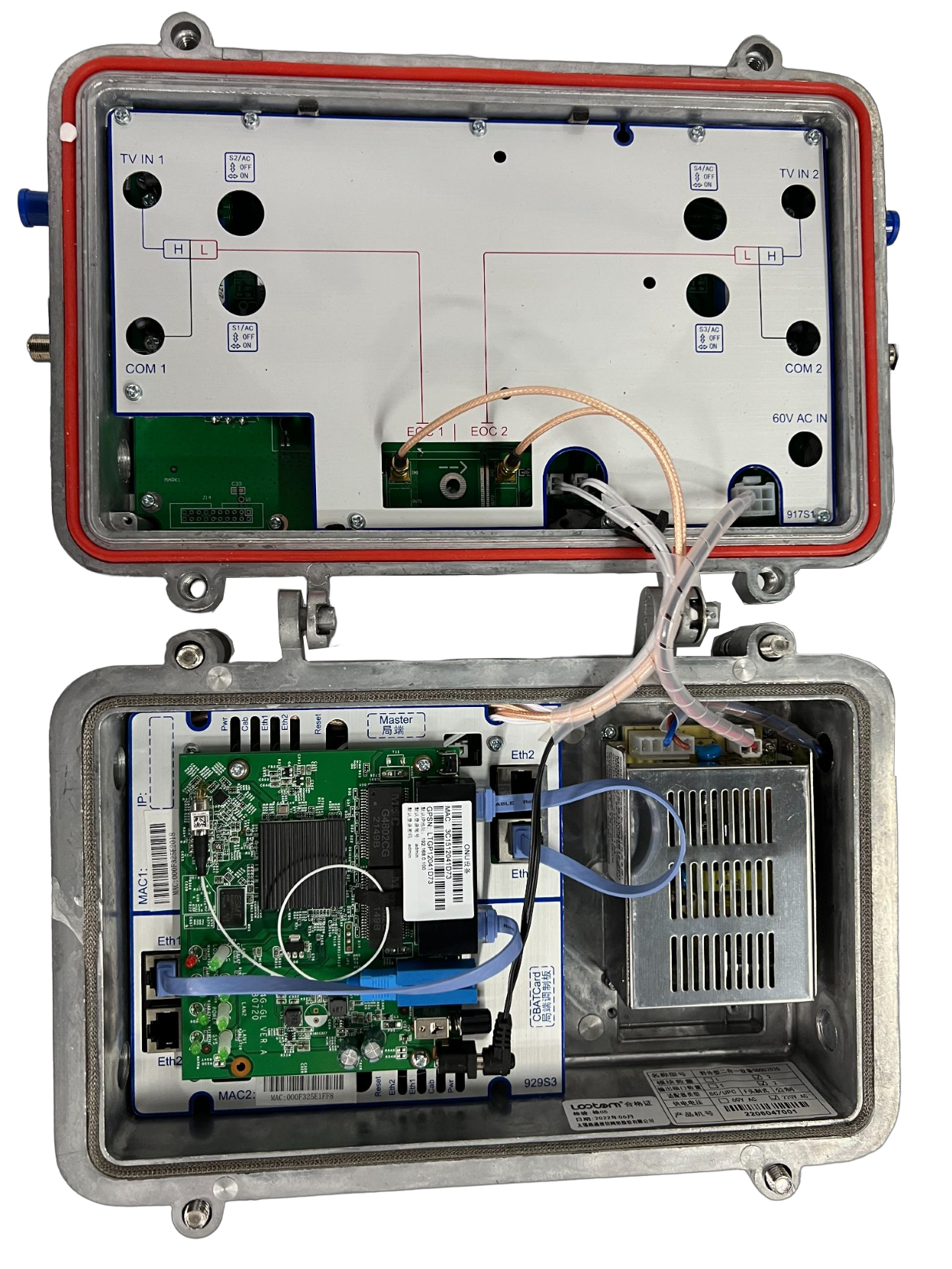

        GDOU2020 Two-in-one EOC Master


        Overview        GDOU2020?series two-in-one is a multimedia local access device that based on IEEE P1901/HomePlug AV、EPON and other technologies.Its main function is to receive IP data signal ,and IP data signal be modulated by OFDM,then the modulated signal and TV signal mixed to coaxial cable for transmission,The multimedia signals are transmitted to users over the existing CATV coaxial network.
               This node integrates EOC、ONU、TV & DATA functions.. GDOU2000 series two-in-one internal EOC module adopts a hot-swappable modular design with high isolation,configuring by demand ,networking flexibly ,upgrading smoothly.Initially
               The access rate of users’ bidirectional network modification is low, and each module has wide coverage. In the later stage, to meet the needs of users for high bandwidth and high permeability, modules can be added and each module will be covered thinly.The network does not need to be rebuilt.
               Supports existing tree and star CATV networks with high bandwidth, long transmission distance and good network adaptability. In addition, it also has high reliable lightning protection and peak relief circuit to ensure long-term stable and reliable operation of the system network. Features         Apply HomePlug AV technology(IEEE P1901)
                Speed up to 500Mbps on physical layer
                OFDM modulation technology has good anti-noise ability and performance
                through the branch distributor, there is no need to change the existing HFC network
                Support VLAN, comprehensive QoS quality assurance
                Flexible and convenient installation, plug and play
                Supports MIB libraries based on radio and television standards, including SNMP V1, V2, and V3 Technical Specifications

        Parameter

        Specification

        Standard

        IEEE802.3、IEEE802.3X、IEEE802.3u  IEEE P1901

        EoC Protocol

        HomePlug AV

        Protocol

        CSMA/CA

        Transmission Speed

        500 Mbps

        Transmission Bandwidth

        7.5-65MHz

        Modulation technique

        Support 4096/1024/256/64/16/8-QAM、QPSK、BPSK and ROBO modulation

        Data Channel

        Support data transmit between ethernet and coaxial cable network

        Transmission distance

        1km through coaxial cable

        Security

        128-bit AES encryption

        VLAN

        IEEE802.1Q (VLAN lagging)

        QoS

        Support ToS and CoS package classification

        Flow control

        Support flow control based on ports

        SNMP

        SNMP v1 v2 v3

        802.1X

        Support IEEE802.1X access authentication

        Watchdog

        Support monitoring CPU by watchdog

        Management

        Support user management based on SNMP、Web and CLI

        LED Light

        Power(power status)、EOC、ONU status indicator

        Interface

        2*TV/Cable ports、1*sfp slot、2*GE ethenet ports、3*RST button

        ONU interface parameter

        RX wavelength 1490nm、TX wavelength 1310nm、Tx power:-1~+4dBm、

        RX power:-26.5~-3 dBm、Optical connector:SC/APC

        Consumption

        ≦18W

        Power

        InputAC60V or AC220V

        Size

        330mm×220mm×120mm

        Environment

        Storage temperature -20?C~70?C

        Working temperature0?C~45?C

        Humidity10%~90%(non-condensation
